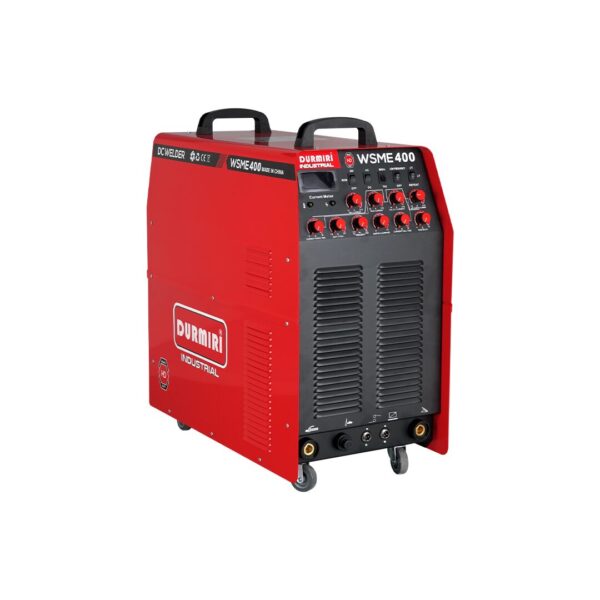

AC / DC INVERTER TIG / MMA PULSE WELDER
Multi-functions:AC/DC MMA,AC/DC pulse TIG.
Quality square wave power supply, stable arc.
Super cleaning ability of oxide film, continuously adjustable cleaning width, bright and beautiful weld seam. Especially adapted to weld aluminum, magnesium and its alloy materials.
Easy to start arc, stable welding current, quick dynamic response, focused arc.
AC welding without bias and beautiful welding forming.
Comprehensive protection functions of over-current, over-heat, over-voltage and under-voltage. Safe and reliable.
Panel with remote control, optional to be equipped with foot switch.
- Description
Description
WSME-SERIES
| Model | WSME-400 | الموديل |
|---|---|---|
| Code | 697 | الكود |
| Rated Output Current (a) | 10-315A | الاستطاعة |
| Rated Duty Cycle (%) | 60 | (%) معدل دورة العمل |
| Usable Electrode(mm) | 1.6~5.0 | سلك اللحام القابل للاستخدام |
| Power Voltage(v) | 380V | الجهد |
| Arc Strike Way | HF | Arc Strike Way |
| Insulation Class | F | فئة العزل |
| No-load Voltage(v) | 60 | (v) الجهد عند انعدام الحمولة |
| Weight | 40KG | الوزن |
